 > 제품소개 > 유수분리기 |
|
 |
| |
| 지역＼항목 |
노르말 핵산농도 |
1일 폐수 배출량 2,000㎡ 미만 업체 |
수노이온 농도(PH) |
| 광유류(mg/L) |
동, 식물성 지류(mg/L) |
BOD(mg/L) |
COD(mg/L) |
부유물 질량(mg/L) |
| 청정지역 |
1이하 |
5이하 |
40이하 |
50이하 |
40이하 |
5.8~8.6 |
| 가지역 |
5이하 |
30이하 |
80이하 |
90이하 |
80이하 |
5.8~8.6 |
| 나지역 |
5이하 |
30이하 |
120이하 |
130이하 |
120이하 |
5.8~8.6 |
| 특례지역 |
5이하 |
30이하 |
30이하 |
40이하 |
30이하 |
5.8~8.6 |
|
|
 |
 |
| |
 |
| YUSOO-BREAKER |
Installed Compressor Capacity(㎥/min) |
| Screw Compressor |
Piston Compressor |
| Climate zone |
Turbin-Oil |
VCL-Oil(*) |
VDL-Oil(**) |
Synthetic-Oil |
Turbin-Oil |
Synthetic-Oil |
| YUSOO-8 |
Green |
9.4 |
7.6 |
9.4 |
6.5~7.6 |
7.3 |
5.3~6.5 |
| Blue |
80. |
6.5 |
8.0 |
5.5~6.5 |
6.2 |
4.5~5.5 |
| Red |
6.5 |
5.4 |
6.5 |
4.5~5.3 |
5.1 |
3.7~4.4 |
| YUSOO-15 |
Green |
17.5 |
14.5 |
17.5 |
13.0~14.5 |
14.0 |
10.5~12.3 |
| Blue |
15.0 |
12.5 |
15.0 |
11.0~12.5 |
12.0 |
9.0~10.3 |
| Red |
12.5 |
10.0 |
12.5 |
9.0~10.2 |
9.8 |
7.4~8.6 |
| YUSOO-30 |
Green |
35.0 |
29.0 |
35.0 |
26.3~29.0 |
27.5 |
19.3~22.5 |
| Blue |
30.0 |
25.0 |
30.0 |
22.5~25.0 |
23.5 |
16.5~19.0 |
| Red |
24.5 |
20.5 |
24.5 |
18.5~20.5 |
19.5 |
19.5~15.5 |
| YUSOO-42 |
Green |
49.0 |
41.5 |
49.0 |
37.5~41.5 |
34.5 |
25.8~31.0 |
| Blue |
42.0 |
35.5 |
42.0 |
32.0~35.5 |
29.5 |
22.0~26.5 |
| Red |
34.5 |
29.0 |
34.5 |
26.0~29.0 |
24.0 |
18.0~21.0 |
| YUSOO-100 |
Green |
117.0 |
87.7 |
117.0 |
76.0~87.8 |
79.5 |
60.0~70.0 |
| Blue |
100.0 |
75.0 |
100.0 |
65.0~75.0 |
68.0 |
51.0~60.0 |
| Red |
78.0 |
58.5 |
78.0 |
50.7~58.5 |
53.0 |
39.8~47.0 |
|
| |
| Oil Grade : Turbine oil : 광유 / VOL-Oil : 광유+합성유 / VDL-Oil : 광유 / Synthetic-Oil : 합성유 |
|
| |

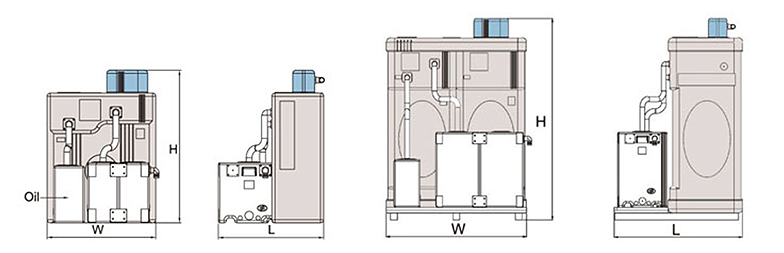

| DIMENSION |
 |
|
| YUSOO-BREAKER |
YUSOO-8 |
YUSOO-15 |
YUSOO-30 |
YUSOO-42 |
YUSOO-100 |
| Condensate Feed |
3/4" |
1" |
| Condensate Discharge |
3/4" |
1" |
| Temperature(min/max. ℃) |
+5/60 |
| Weight(kg) |
25 |
29 |
39 |
45 |
87 |
| Dimension(WxLXH mm) |
670x550x970 |
670x700x970 |
670x700x970 |
670x700x970 |
1025x937x1472 |
|
|
|
|
|
|
