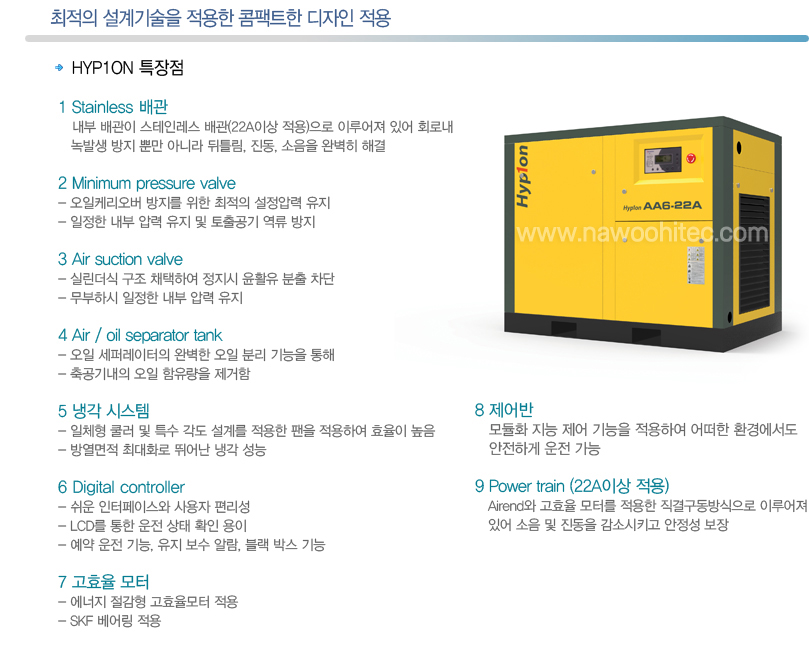

 > 제품소개 > 급유식 스크류 컴프레서 - HYP1ON Series |
|
 |
| |
 |
| MODEL |
HYPION
22 |
HYPION
37 |
HYPION
45 |
HYPION
55 |
HYPION
75
|
HYPION
90 |
Comp
ressor |
Capacity |
8BAR |
3.7 |
6.8 |
8 |
9.8 |
13.1 |
16.8 |
| Cooling Method |
Air Cooled |
| Discharge Air Temp. |
Ambient Temperature +15℃ |
| Driving Method |
Coupling Direct |
| Min.Working Pressure |
4.5kg / ㎠ |
| Discharge Connection(A) |
32 |
40 |
50 |
50 |
50 |
50 |
| Motor |
Motor Power (kW) |
22 |
37 |
45 |
55 |
75 |
90 |
| Frequency (Hz) |
50 / 60 |
| Voltage |
220 / 380 / 440 |
| Starting System |
Star-Delta |
| Oil Capacity (liter) |
9 |
10 |
22.5 |
50 |
50 |
70 |
| Oil Carry Over |
3ppm(weight / weight) |
| Noise level : dB(A) |
|
|
|
|
|
|
| Net Weight(appox.) (kg) |
800 |
900 |
1,020 |
1,600 |
1,900 |
2,400 |
| Dimension (mm) |
Length (L) |
1,400 |
1,450 |
1,550 |
1,750 |
1,850 |
2,150 |
| Width (W) |
800 |
900 |
1,160 |
1,200 |
1,300 |
1,460 |
| Height (H) |
1,000 |
1,200 |
1,400 |
1,400 |
1,400 |
1,620 |
|
|
|
| |
 |
| MODEL |
HYPION 7.5 |
HYPION 11 |
HYPION 15 |
Comp
ressor |
Capacity |
8BAR |
1.06 |
1.55 |
2.13 |
| 10BAR |
0.86 |
1.35 |
1.94 |
| 13BAR |
0.67 |
1.13 |
1.44 |
| Cooling Method |
Air Cooled |
| Discharge Air Temp. |
Ambient Temperature +15℃ |
| Driving Method |
Belt |
| Min.Working Pressure |
4.5kg / ㎠ |
| Discharge Connection(A) |
25 |
25 |
25 |
| Motor |
Motor Power (kW) |
7.5 |
11 |
15 |
| Frequency (Hz) |
50 / 60 |
| Voltage |
220 / 380 / 440 |
| Starting System |
Star-Delta |
| Oil Capacity (liter) |
9 |
10 |
12 |
| Oil Carry Over |
3ppm(weight / weight) |
| Noise level : dB(A) |
68 |
69 |
70 |
| Net Weight(appox.) (kg) |
423 |
479 |
562 |
| Dimension (mm) |
Length (L) |
1,930 |
1,930 |
1,930 |
| Width (W) |
790 |
825 |
880 |
| Height (H) |
1,610 |
1,640 |
1,710 |
|
|
|
|
|
|
